WFM UK: UI Refresh Rotas: Troubleshooting Common Queries Rota Processes and T&A

Overview

This article describes various troubleshooting tips and areas to check regarding issues within Rotas, including Rota Processes (including submitting Weeks to Payroll, Shifts, Shift Codes, Hours, Rota Analysis, rolling back Rotas) and T&A issues in Workforce Management.

Rota Processes

Question / Problem: Unable to Submit Weeks in the Rota module

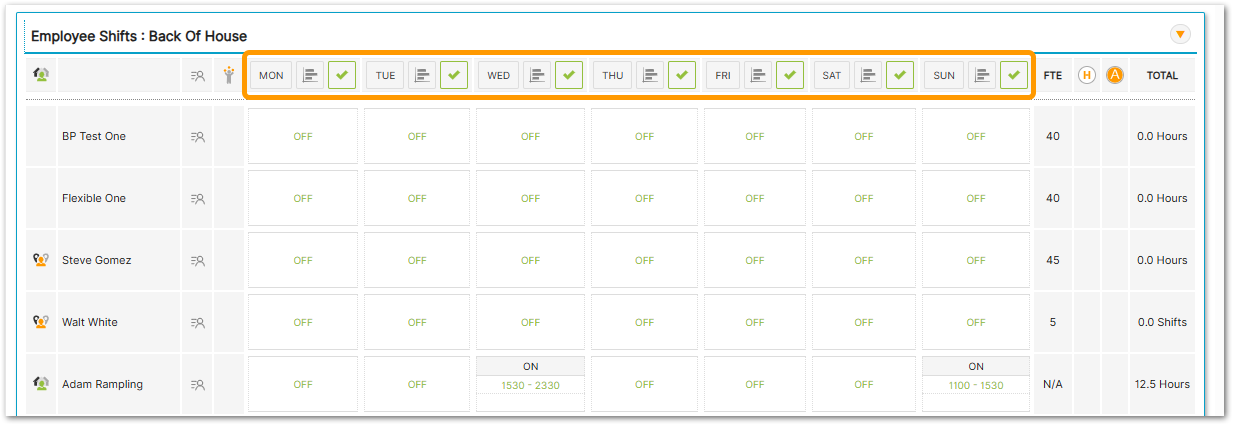

Before the option to Submit to Payroll is available, all the days within each Division need to be set as Complete, with green ticks as seen below.

To do so:

• From a rota, select a Day as required

The 'Day Content' page will display.

• Make any final changes to the rota, confirm the Time and Attendance data if required

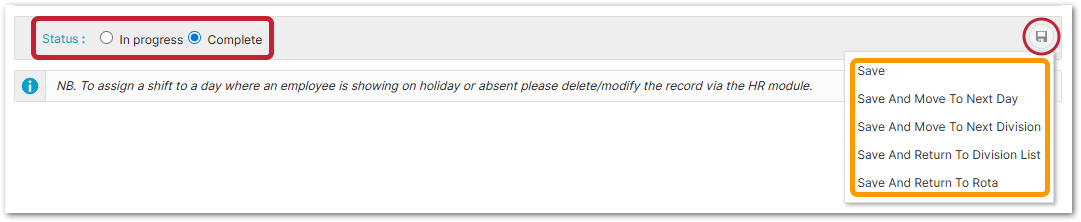

• At the bottom of the page, set the Status as Complete and then choose the appropriate Save option

Once all the days within the Division have been completed, the option to select Submitted to Payroll will become available to select under the Status drop-down in the main Rota screen.

Once this has been submitted, the Rota week can then be viewed when searching for weeks set to 'Submitted to Payroll' within the 'View Rotas' area.

To do so:

• Go to Rotas > View Rotas > set the Status to Submitted to Payroll > Search

Question / Problem: No Option to Roll Back a Rota

This error can occur if the user does not have access to roll back Rotas.

To resolve, one of the company’s Super Users can amend this access for the individual by following:

• Rotas > Users > Assign User Access > search and select the user who requires access > User Profile > enable the Rollback Rota access > Save

Question / Problem: Setting Default Shifts for Rotas

Default shifts can only be assigned via the Employment Details page.
To access:

• Go to HR > Employees > Employee List
• Search for and select the required Employee

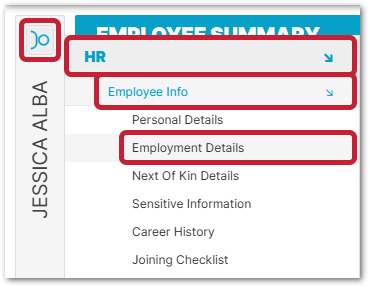

• In the side employee menu, go to HR > Employee Info > Employment Details

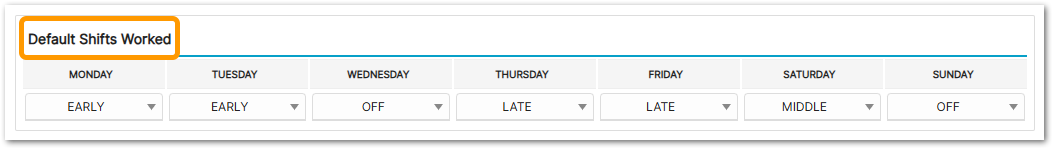

• In the 'Default Shifts Worked' area, use the drop-down options on each day to select the required Shifts
• Select Save from the bottom of the screen

This section will not be displayed for customers using the Scheduling module.

These shifts need to be assigned to the correct Locations, Divisions and saved as Default Shifts.
To do so:

• Go to Rotas

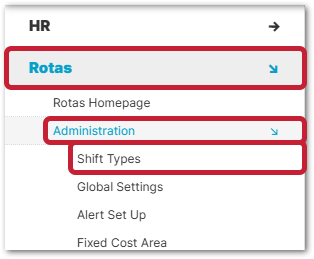

• In the Administration drop-down menu, select Shift Types

• Select the required Shift Type
• Use the Assign Locations and Assign Divisions buttons as required to assign the Shift Type to the relevant Divisions and Locations
• Tick the Default Shift box
• Save

Once assigned, these shifts will appear on the Rota each week for the employee and can be overridden when scheduling if required.

Question / Problem: Unable to Add Shifts to Rota

If Shifts cannot be added to the Rota, e.g. the only options available are ‘OFF’ or ‘HOL’, this can be due to the Shift Types not having a Location or Division assigned to them.

To assign these:

• Go to Rotas > Administration > Shift Types > select Shift Type > Assign Location
• Go to Rotas > Administration > Shift Types > select Shift Type > Assign Division

An alternative method to follow is also available:

• Go to Rotas > Administration > Configure Locations > select a Location

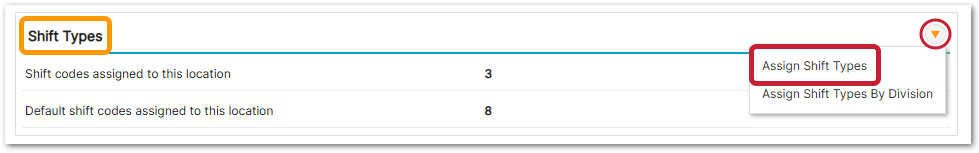

• In the 'Shift Types' section, use the yellow drop-down arrow and select Assign Shift Types

• Assign the required available Shift Types and select Save
• Then go back to Configure Locations and select the required Location
• Again, in the 'Shift Types' section, use the yellow drop-down arrow and select Assign Shift Types By Division
• Select the required Division and assign the relevant Shift Types
• Save

Please note: It is not possible to assign all shifts to Locations and Divisions in one go, as the process has to be done manually.


Problem / Question: Hours Disappearing from Rota

Shift Codes
If no Shift Codes have been set up for the Division on the Rota, this can cause hours to not feed through to the Rota.


To resolve:

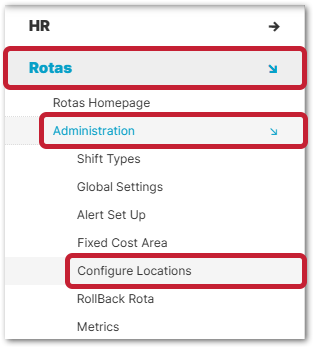

• Go to Rotas > Administration > Configure Locations

• Select the required Location

• Go to Rotas > Administration > Configure Locations > select a Location
• In the 'Shift Types' section, use the yellow drop-down arrow and select Assign Shift Types by Division
• Select the required Division and assign the relevant Shift Types
• Save

To set up further shift codes –

WFM - Creating Shift Types


Question / Answer: Employee Not Displaying in Rota Analysis

Please Note: This section is only relevant for Salaried Employee costs and not hourly/shift-paid employees.

Job Title
Employees not showing in the Rota Analysis can be due to their Job Title not being selected to be included within the Rota.
To resolve:

• Go to Rotas > Administration > Configure Locations > select the Location of the Employee > Edit Job Title Salary > set required Job Title to Yes > Save

T&A Issues

Question / Problem: T&A Device Stopped Recording Data

Please note: These steps are for customers who use the Time & Attendance Synel machines provided by Fourth.

Troubleshooting Checklist:

• Check that the network cable is plugged into the port labelled ‘NET’ under the clock
• Check the other end is plugged into a live network point
• Rebooting the clocks could start to send data through. For non-PoE clocks, unplug the power from the mains for 5 minutes and then plug back in. For PoE clocks, disconnect the PoE injector for 5 minutes and then plug back in
• Can employees clock in and out on the clock, or is the power completely off on the clock? Check the Power is Live
• Confirm if the firewall is configured to allow outbound traffic on TCP Port 3734

Please also find below the required template to be filled it and sent to your Fourth representative in case an engineer visit is required.

Template Details:

• Customer name
• Site / Location name and full address
• Contact name and telephone number
• The issue experienced with the T&A clock
• Any error messages displayed

Please note: If a call-out is arranged by Fourth for an engineer and the issue is not related to the maintenance of the clock, then the call-out will be charged at £220. Additional charges for parts may be added to the invoice after the engineer has visited is replacements are required, which is not covered by warranty.

Question / Problem: How to Check Clock In / Out Hours

To check the Clock In/Out hours:

• Go to Rotas > Rotas > View Rotas > select Search
• Select the required Rota > select the required Day > select the Clock icon

This will open the Time & Attendance page, where hours can be viewed.

Question / Problem: Issue Clocking in with Employee Fingerprint

Solutions to this issue, along with a best practice process for enrolling and clocking Employees in and out, are detailed within the following article -WFM UK: Time & Attendance: Biometric Devices, Clocking In and Out, Registering Breaks



Question / Problem: Unable to View Clock on Rota

Global Setting
To view the Clock on the Rotas, the Global Setting View Time & Attendance needs to be turned on, as this will allow the Time & Attendance functionality / Clock column itself within the Rota to be shown.


To have this setting enabled, please contact your Head Office for them to provide access via the following path:

• Rotas > Administration > Global Settings
• Use the yellow drop-down arrow and select Edit Rota Settings
• Tick the Time & Attendance box and Save

Rota History

You are able to audit changes that are made to any rota by following the below path:

• Rotas > Rotas > View Rotas > search for and select the appropriate Rota

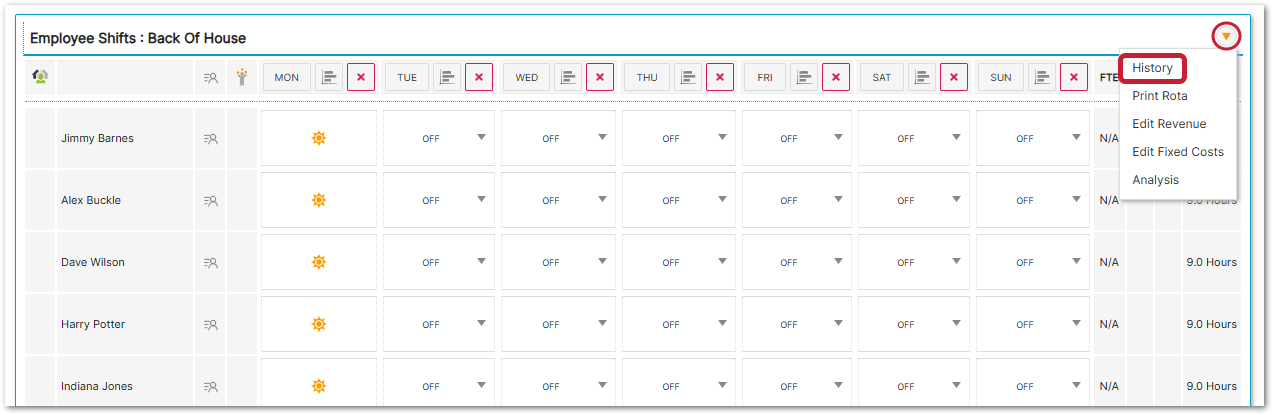

• Against a shifts section, use the yellow drop-down arrow and select History

Please note: this is only viewable on Rotas that are in the past, current and future rotas will not yet display this button.

This is useful to see who has submitted to Rota to payroll or completed individual divisions.

Also See
WFM - Rotas Troubleshooting Articles
